S5F1P1T - 5 Switch 1 Fan 1 Plug Smart Touch Panel

Specifications

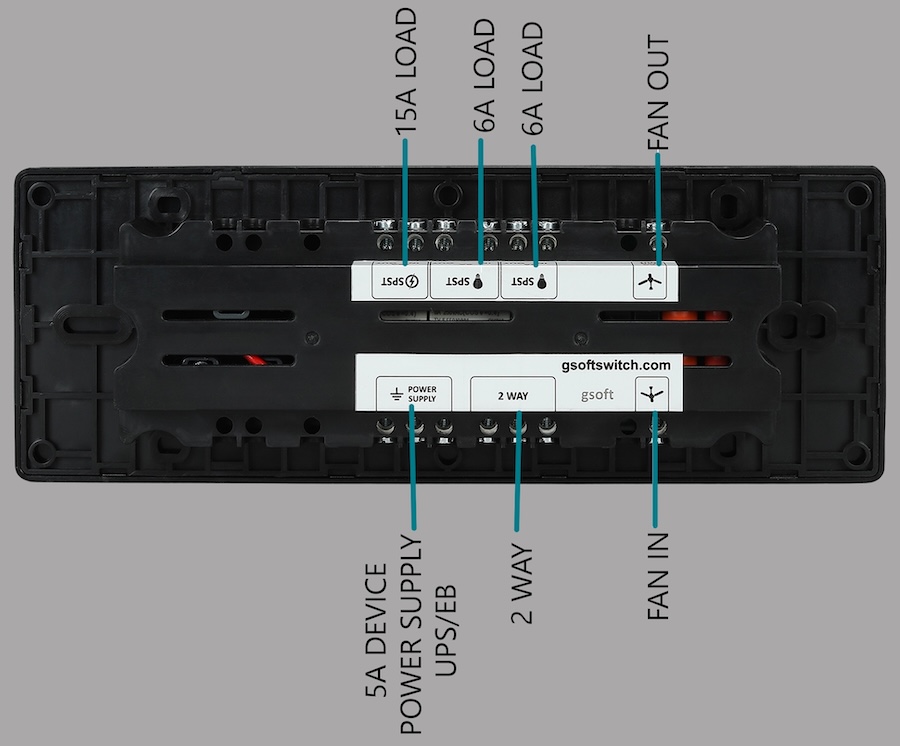

Electrical Configuration

Type	Rating	Quantity
Fan	6A	1
Plug	6A	1
Switch	15A	1
Switch	6A	2
Two Way Switch	5A	1

Features

Everything You Need

Mobile App

Android & iOS

Control every switch, fan, and plug from your smartphone. Available on Google Play and App Store. Real-time status, instant toggle, and full device configuration from anywhere.

Capacitive Touch

Sensitive glass panel

Premium tempered glass panel with ultra-sensitive capacitive touch sensors. No mechanical buttons — just a gentle tap. Whisper-quiet operation with smudge-resistant surface.

WiFi Enabled

2.4 GHz connectivity

Connects to your home WiFi router (2.4GHz) for remote access from anywhere in the world. No separate hub or bridge required. Works with any standard router.

Remote Control

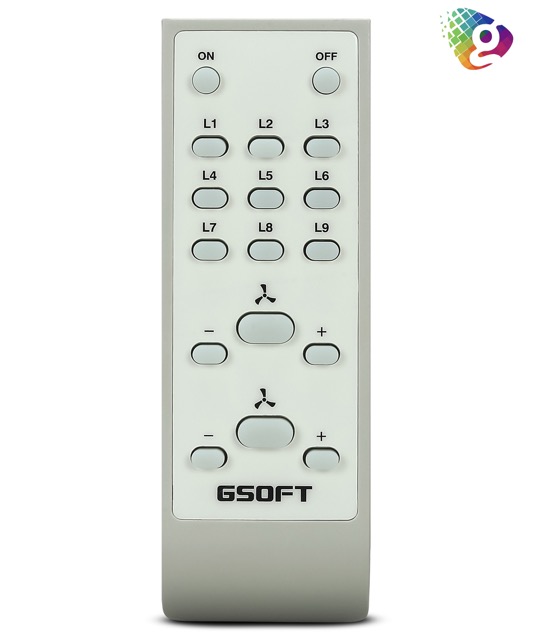

IR remote included

Comes with an IR remote control for quick access without your phone. Control switches, fan speed, and backlight from across the room. Perfect for elderly family members.

RTC Timer

Schedule automation

Hardware Real-Time Clock ensures timers run even without internet. Schedule daily, weekly, monthly, or cyclic timers. Supports multi-day selection (weekdays, weekends) and auto-delete once-timers.

Multi-User

Shared access

Add family members or guests without sharing your password. Role-based access control — Owner, Tenant, Guest. Each user gets their own login with controlled permissions.

Scenes

User & event based

Create "Movie Night" or "Good Morning" scenes that control multiple switches across multiple devices with one tap. Event-based triggers automate actions when a switch changes state.

Voice Control

Alexa & Google Home

Works with Amazon Alexa and Google Home. Say "Alexa, turn on bedroom light" or "Hey Google, set fan to speed 3." Per-switch voice lock available for child safety.

Fan Regulator

Built-in speed control

Built-in electronic fan speed regulator with touch up/down controls. Supports regular AC fans and BLDC fans. Control fan speed from the panel, remote, app, or voice.

Why S5F1P1T

Designed to Disappear into Your Walls. Impossible to Ignore.

The S5F1P1T isn't just a switch — it's an upgrade to how you experience your home. The edge-to-edge tempered glass panel blends seamlessly with any decor, from minimalist apartments to luxury villas. Smudge-resistant, whisper-quiet, and impossibly responsive.

Every touch registers instantly. Every command executes without delay. Set timers that run even when the internet is down, thanks to the built-in RTC (Real-Time Clock) hardware. Create scenes that transform your living room from work mode to movie night with a single tap. Let Alexa dim the lights while Google adjusts the fan — simultaneously.

Works offline, shines online. Out of the box, it works as a premium touch switch. Connect to WiFi and it becomes the brain of your smart home. No hub required. No subscription fees. Ever.

Hardware

Device Specifications

Parameter	Value	Details
Supported Metal Box	233mm x 78mm (9"x3")	8 Gang
Supported Metal Box	208mm x 78mm (8"x3")	6 Gang
Device Operating Voltage	~230V AC	Power Supply
Switch IN/OUT Voltage	Max: ~230V AC	Load Rating
